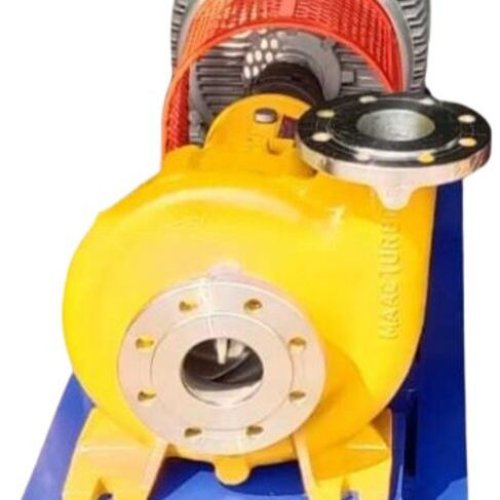

Lime Slurry Pump

End Suction top Discharge Single Stage Overhung Horizontal Radial Split case pump designed for Heavy Duty Chemical Process Pump as per DIN EN ISO 2858 / 5199 standard.

All C FIPP pumps are designed around a single, basic hydraulic and mechanical design concept. This ensures efficiencies across a wide spectrum of operating conditions, unmatched application flexibility and superior interchange ability.

Pump Description :

• Fully in compliance with DIN EN 22858/ISO 2858
• Radially split single casing with flanged connections.
• Horizontal end suction and vertical discharge line with centre aligned.
• Close , Open and Semi Open impeller to matching for different applications.
• Grease and Flooded oil lubricated bearings
• Casing and casing cover wear ring replaceable
• Gland Packed / mechanical seal

Benefits :

• Back Pull-Out design for ease of maintenance  allows easy maintenance.
• Optimum Efficiency
• Various materials of construction available for various application needs.
• Durable Mechanical seal.
• Compact design

Standards Compliance :

• Testing Standard: ISO5199, HI standards
• Construction standard: ISO2858

Mechanical Seal :

• Single Mechanical Seal is suitable for all the models in this segment
• Manufacturer standard Double mechanical seal is possible in all the models
• API mechanical seal can be offered according the size of the pump

Bearing Housing Lubricated :

• Oil Lubricated
• Oil mist lubrication technologies
